ClearRoute CTF Writeup: Bypassing Proxy Checks and the Case of the Missing Module#

Finding the Check#

By searching for the error string “Some Error Occured”, I found the exact function responsible for this logic. Ghidra demangled the Swift function name to ClearRoute.ContentView.checkForProxyAndSend():

/* Decompiled function from Ghidra */
void _$s10ClearRoute11ContentViewV20checkForProxyAndSendyyF(uint param_1)
{
  // ... (setup code) ...

  // 1. The check is performed
  _$s10ClearRoute11ContentViewV14isProxyEnabledSbyF();

  // 2. The result is checked
  if ((param_1 & 1) == 0) {
    // 3. IF PROXY IS *NOT* ENABLED
    // ... (set UI to "Request Successful") ...

    // 4. THE REAL REQUEST IS SENT
    _$s10ClearRoute11ContentViewV20sendSensitiveRequestyyF();
  }
  else {
    // 5. IF PROXY *IS* ENABLED
    // ... (set UI to "Some Error Occured...") ...

    // Notice: sendSensitiveRequest() is NOT called!
  }
  return;
}

The analysis was clear and easy:

1. The app calls isProxyEnabled().
2. If it returns true, the app shows an error and never sends the request.
3. If it returns false, it calls sendSensitiveRequest() to send the flag.

This is why Burp saw nothing. The app detected it and intentionally skipped the network call.

Finding the Flag (Static Method)#

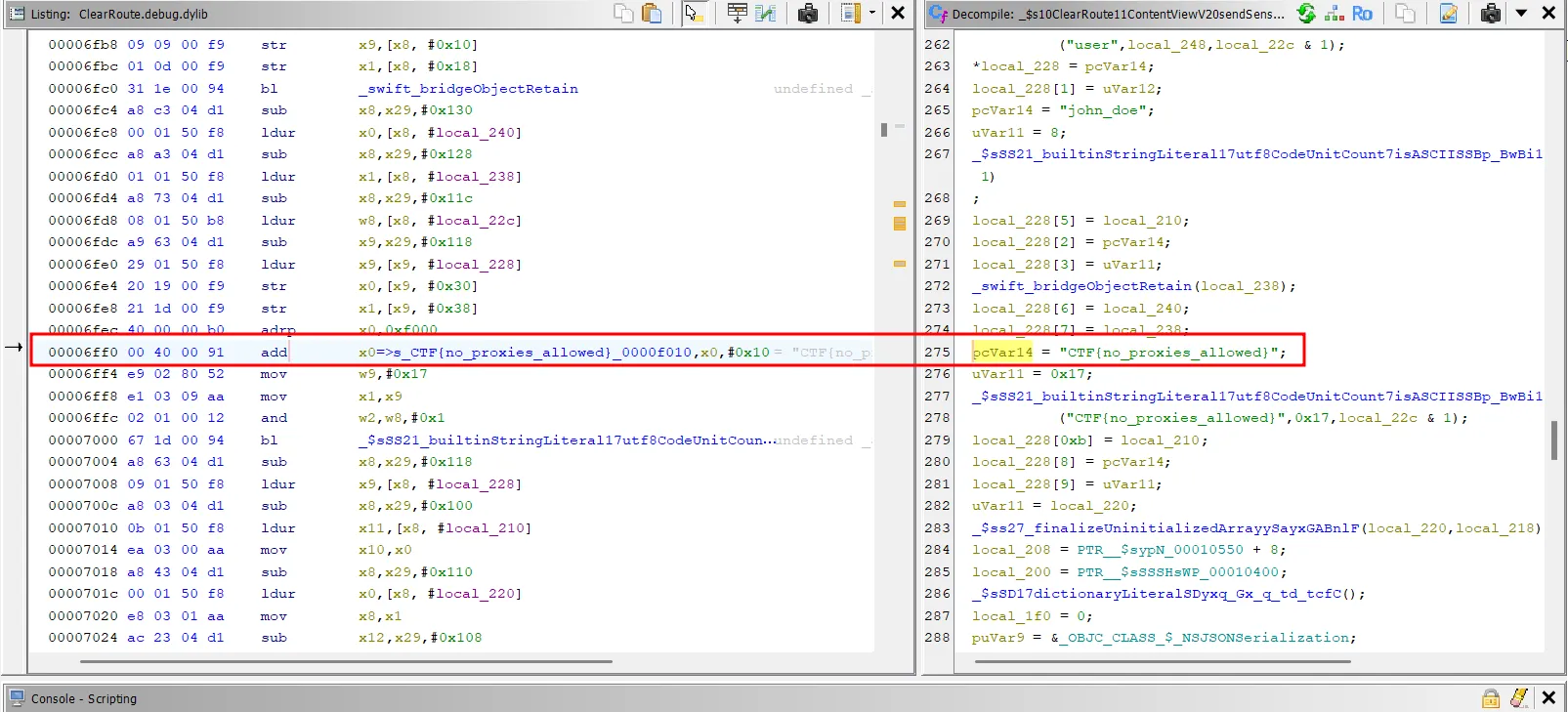

A quick static-only solve was also possible. By analyzing the sendSensitiveRequest function, I could see the flag being hardcoded and loaded into the request body:

; Inside sendSensitiveRequest()
; ...
; "8ksec" + "_int" + "er" + "cepted" = "8ksec_intercepted"
; ...
add     x0=>s_CTF{no_proxies_allowed}_0000f010 ,x0,#0x10 = "CTF{no_proxies_allowed}"
; ...

Flag: CTF{no_proxies_allowed}

But this is not the intended solution of course. The goal is to bypass the check and capture the request live.

Attempt 1: Hook by Name#

I started with the most straightforward approach: hook the function by its demangled symbol name.

Script:

const SYMBOL_NAME = "_$s10ClearRoute11ContentViewV14isProxyEnabledSbyF";
const module = Process.findModuleByName("ClearRoute"); // <-- The mistake here that I was hooking into the MainModule and not the debug.dylib which contained the logic code, however I tried a dumper soultion by thinking that the issue is with the findExportByName().
const isProxyEnabledAddr = module.findExportByName(SYMBOL_NAME);
// ... attach hook ...

Result: [-] error: Function not found by name.

Attempt 2: Hook by Address Offset#

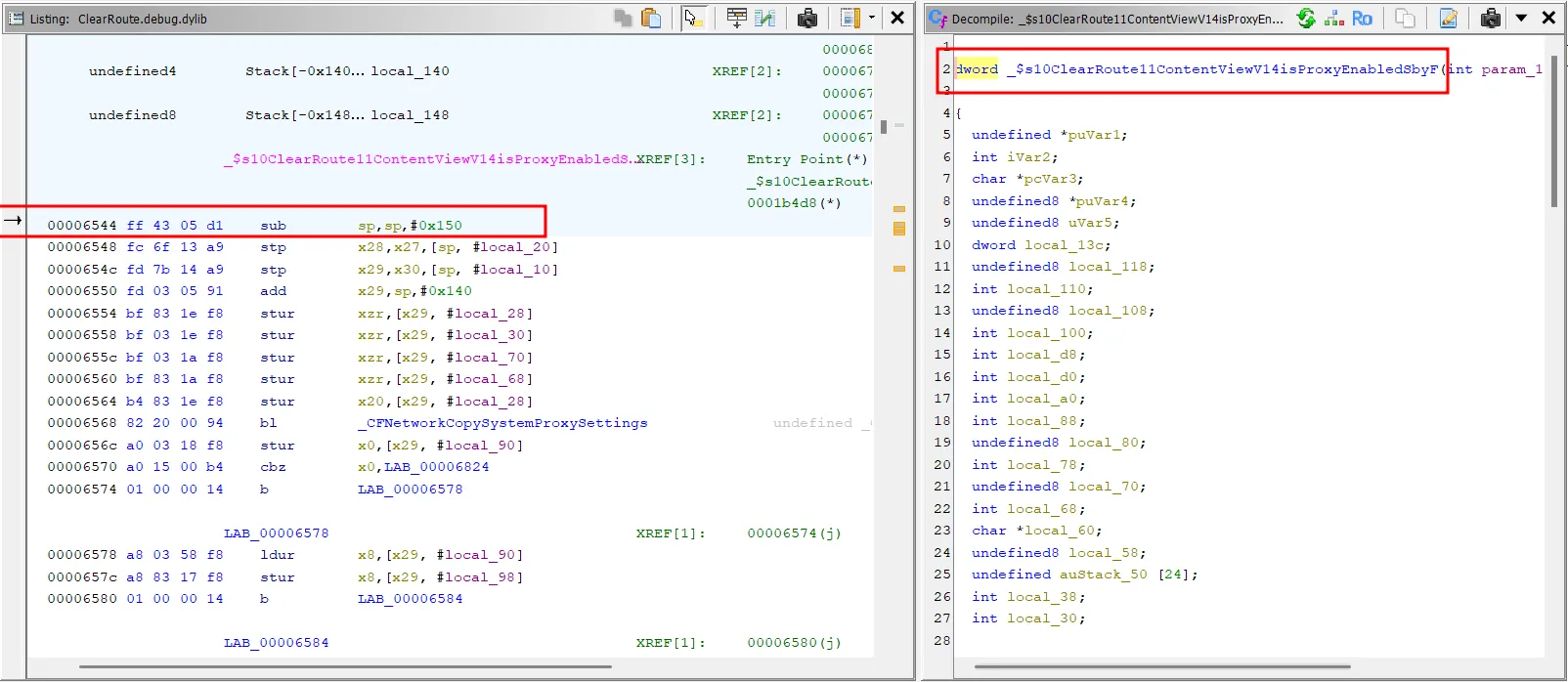

I knew from Ghidra that the function was at offset 0x6544. So, I tried hooking its direct memory address.

Script:

const MODULE_NAME = "ClearRoute"; // <-- Same dump mistake
const FUNCTION_OFFSET = 0x6544;
const module = Process.findModuleByName(MODULE_NAME);
const isProxyEnabledAddr = module.base.add(FUNCTION_OFFSET);

Interceptor.attach(isProxyEnabledAddr, { /* ... */ });

Result: [+] Hook is active. Now press the button in the app.

This was the most confusing part. The script ran with no error, but when I clicked the button nothing happened. No logs from our hook, and still no request in Burp. This was the critical clue.

The Working Script (Address Offset Method)#

This script combines our two key pieces of information: the correct offset (0x6544) which is the starting offset address of the function we want to hook:

and the correct module (ClearRoute.debug.dylib).

console.log("[+] Starting Frida script for ClearRoute...");

// The module NAME that contains the code
const MODULE_NAME = "ClearRoute.debug.dylib";

// Offset calculated from Ghidra (0x6544 - 0x0) 0x0 is the base address
const FUNCTION_OFFSET = 0x6544;

// 1. Find the app's *code* module.
const module = Process.findModuleByName(MODULE_NAME);

if (!module) {
    console.error("[-] Could not find module: " + MODULE_NAME);
} else {
    console.log("[+] Found module '" + MODULE_NAME + "' at: " + module.base);

    // 2. Calculate the function's real address in memory
    //    (Module Base + Offset)
    const isProxyEnabledAddr = module.base.add(FUNCTION_OFFSET);
    console.log("[+] Calculated isProxyEnabled() address: " + isProxyEnabledAddr);

    // 3. Attach an interceptor to that address
    Interceptor.attach(isProxyEnabledAddr, {
        onEnter: function(args) {
            console.log("\n[***] FUNCTION CALLED! [***]");
            console.log("[*] isProxyEnabled() was just hit at " + isProxyEnabledAddr);
            // you can delete the whole onEnter if you like clean shit code :"D
        },
        onLeave: function(retval) {
            console.log("[*] isProxyEnabled() is returning. Original value: " + retval);
            retval.replace(0); // Set return value to 0 (false)
            console.log("[+] Patched return value to 0 (false). Proxy check bypassed!");
            console.log("[***] --- [***]\n");
        }
    });

    console.log("[+] Hook is active. Now press the button in the app.");
}

Exploit#

Running this final script:

    [+] Starting Frida script for ClearRoute...
    [+] Found module 'ClearRoute.debug.dylib' at: 0x100cd0000
    [+] Calculated isProxyEnabled() address: 0x100cd6544
    [+] Hook is active. Now press the button in the app.
    [*] isProxyEnabled() was just hit at 0x100cd6544
    [*] isProxyEnabled() is returning. Original value: 0x1
    [+] Patched return value to 0 (false). Proxy check bypassed!```

![alt text](image.png)
