Overview#

I’m solving this iOS challenge, which is an anti-debug/anti-hooking scenario. It’s a simple app with a button to reveal the flag if hooking isn’t detected.

Frida trace output#

Started tracing 129 functions. Press Ctrl+C to stop.
    7696 ms  dyld_dlsym_hook()
                     /* TID 0x3a03 */
    7697 ms  dyld_dlopen_from_hook()
                     /* TID 0x103 */
    7727 ms  $s14Captain_Nohook14ViewControllerC11whereIsflagyySo8UIButtonCF()
    7728 ms     | $s14Captain_Nohook14ViewControllerC4flagSo7UILabelCSgvg()
    7728 ms     | $s14Captain_Nohook14ViewControllerC7getFlagSSyF()
    7728 ms     |    | $s14Captain_Nohook22is_noncompliant_deviceSbyF()
    7728 ms     |    |    | $s14Captain_Nohook30ReverseEngineeringToolsCheckerCMa()
    7728 ms     |    |    | $s14Captain_Nohook30ReverseEngineeringToolsCheckerC20amIReverseEngineeredSbyFZ()
    7728 ms     |    |    |    | $s14Captain_Nohook11FailedCheckOMa()
    7728 ms     |    |    |    | $s14Captain_Nohook11FailedCheckO8allCasesSayACGvgZ()
    7728 ms     |    |    |    |    | dyld_dlsym_hook()
    7729 ms     |    |    |    | $s14Captain_Nohook11FailedCheckOMa()
    7729 ms     |    |    |    | $s14Captain_Nohook11FailedCheckOMa()
    7735 ms     |    |    |    | dyld_dlsym_hook()
    7735 ms     |    |    |    | dyld_dlsym_hook()
    7735 ms     |    |    |    | dyld_dlsym_hook()
    7735 ms     |    |    |    | dyld_dlsym_hook()
    7755 ms     |    |    |    | $s14Captain_Nohook11FailedCheckOMa()
    7755 ms     |    |    |    | $s14Captain_Nohook30ReverseEngineeringToolsCheckerC0cdE6StatusV6passed12failedChecksAESb_SayAA11FailedCheckO5check_SS11failMessagetGtcfC()
    7761 ms     |    | dyld_dlopen_hook()
    7761 ms     |    |    | dyld_dlopen_from_hook()
    7773 ms     | $s14Captain_Nohook14ViewControllerC4flagSo7UILabelCSgvg()
    7779 ms  dyld_dlopen_hook()
    7779 ms     | dyld_dlopen_from_hook()
    7779 ms  dyld_dlsym_hook()
    7779 ms  dyld_dlsym_hook()
    7779 ms  dyld_dlsym_hook()
    7779 ms  dyld_dlsym_hook()

Execution path (demangled)#

The demangled Swift function names reveal the execution path:

• whereIsflag() — button click handler that initiates flag retrieval
• getFlag() — attempts to retrieve the flag text
• is_noncompliant_device() — checks if the device is compromised or monitored
• ReverseEngineeringToolsChecker.amIReverseEngineered() — core detection method for hooking frameworks
• FailedCheck.allCases() — enumerates all anti-reversing checks to perform

Primary targets#

The most interesting ones are:

1. is_noncompliant_device
2. amIReverseEngineered

is_noncompliant_device()#

return dVar1 & 1; // Returns 0 (false)

This always returns 0 (false) because dVar1 is initialized to 0 and never modified. The call to amIReverseEngineered() happens, but its return value is ignored. This looks like decompiler confusion or the result is stored elsewhere.

amIReverseEngineered()#

performChecks();        // Executes all checks
return (param_1 ^ 1) & 1; // Inverts the result

It calls performChecks() and then inverts the result with XOR 1. If checks pass (1), it returns 0. If checks fail (0), it returns 1.

performChecks() orchestrator#

So we need to understand performChecks(). Using Ghidra: it implements a check orchestrator that runs multiple anti-debugging/anti-hooking tests.

• Initialization: tracks overall pass/fail and collects failed checks
• Get all checks: FailedCheck.allCases() returns an array of 10 check types [0..9]
• Iterate: loops through each check via IndexingIterator
• Execute: a switch dispatches specific detection functions
• Collect failures: failed checks are pushed into the array
• Return: a status struct with overall result and failed list

The switch statement logic#

Only 4 out of 10 cases are handled explicitly:

case 1: checkExistenceOfSuspiciousFiles()
case 6: checkDYLD()
case 7: checkOpenedPorts()
case 8: checkPSelectFlag()
default: loop back (cases 0,2,3,4,5,9 do nothing)

What each check does:

• Case 1 — checkExistenceOfSuspiciousFiles(): looks for Frida-related files like /usr/lib/frida-gadget.dylib, Cydia paths, jailbreak artifacts
• Case 6 — checkDYLD(): checks loaded dynamic libraries via dyld; looks for FridaGadget.dylib, MobileSubstrate libs, other hooks
• Case 7 — checkOpenedPorts(): scans for open ports (Frida server often 27042)
• Case 8 — checkPSelectFlag(): checks the P_TRACED flag via sysctl for debugger detection

Return logic#

Looking back at amIReverseEngineered():

return (param_1 ^ 1) & 1; // XOR inverts the result

And is_noncompliant_device():

return dVar1 & 1; // Always returns 0

The decompiler seems confused. The actual logic should be: if any of the 4 tests fail, the device is considered “reverse engineered”. But do we really need to resolve all of that?

As you can see, amIReverseEngineered() returns that inverted value. If we patch it to return 0, we likely pass the checks and get the flag.

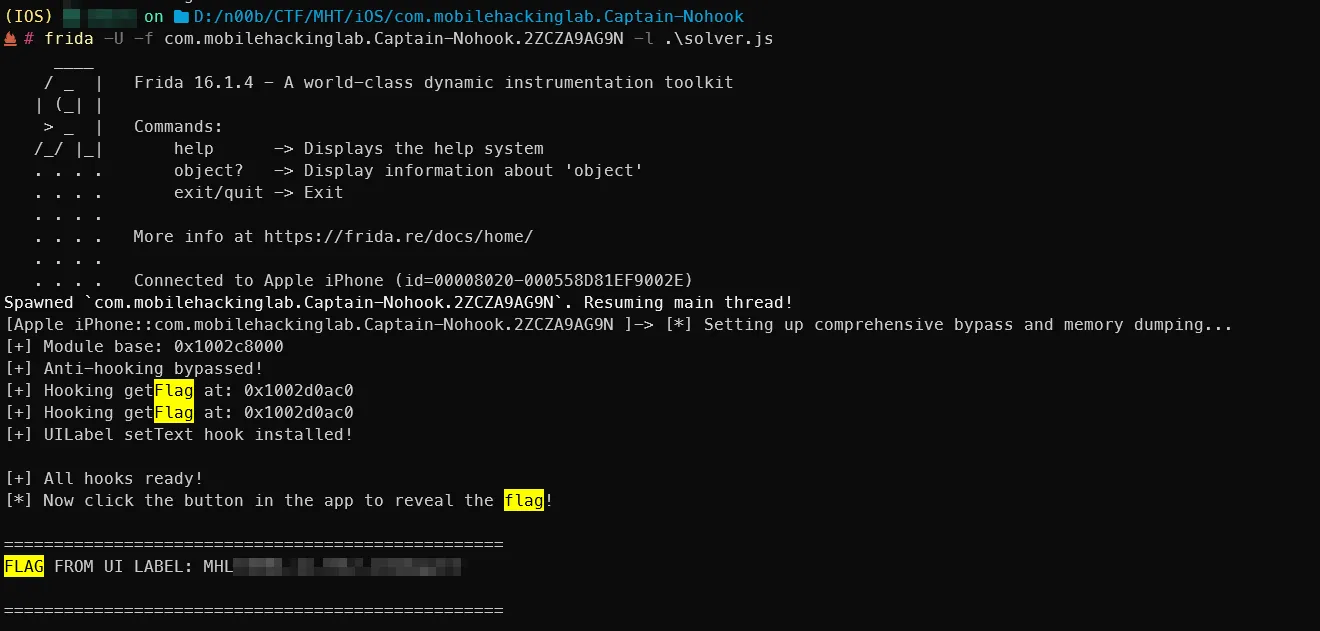

Solver - Memory dump#

Instead of digging through long functions in Ghidra, I tried dumping memory (most return values are there — see the Q&A at the end). It worked :“D (also the challenge description mentions the flag will be in memory).

setTimeout(function () {
    console.log("[*] Setting up comprehensive bypass and memory dumping...");

    var module = Process.findModuleByName("Captain Nohook");
    if (!module) {
        console.log("[-] Module not found");
        return;
    }

    console.log("[+] Module base: " + module.base);

    // 1) Bypass all detection functions
    module.enumerateSymbols().forEach(function (symbol) {
        if (!symbol.address.isNull()) {
            if (
                symbol.name.indexOf("is_noncompliant_device") !== -1 ||
                symbol.name.indexOf("amIReverseEngineered") !== -1
            ) {
                try {
                    Interceptor.attach(symbol.address, {
                        onLeave: function (retval) {
                            retval.replace(ptr(0));
                        },
                    });
                } catch (e) {}
            }
        }
    });

    console.log("[+] Anti-hooking bypassed!");

    // 2) Hook getFlag to capture the decrypted flag string
    module.enumerateSymbols().forEach(function (symbol) {
        // Look for the exact getFlag function (no parameters)
        if (symbol.name === "$s14Captain_Nohook14ViewControllerC7getFlagSSyF") {
            console.log("[+] Hooking getFlag at: " + symbol.address);

            Interceptor.attach(symbol.address, {
                onLeave: function () {
                    // Swift String is returned as a struct: { pointer, length }
                    // ARM64 calling convention: x0 = pointer to data, x1 = length/metadata
                    var stringPtr = this.context.x0;
                    var stringLen = this.context.x1.toInt32();

                    if (!stringPtr.isNull() && stringLen > 0) {
                        try {
                            var flagString = stringPtr.readUtf8String(stringLen);
                            console.log("\n" + "=".repeat(50));
                            console.log("FLAG FOUND: " + flagString);
                            console.log("=".repeat(50) + "\n");
                        } catch (e) {
                            console.log("[!] Error reading string: " + e);
                        }
                    }
                },
            });
        }
    });

    // 3) Also hook UILabel setter to see what's displayed
    if (ObjC.available) {
        try {
            var UILabel = ObjC.classes.UILabel;
            Interceptor.attach(UILabel["- setText:"].implementation, {
                onEnter: function (args) {
                    try {
                        var text = new ObjC.Object(args[2]).toString();
                        if (text.length > 5 && text.indexOf("MHL") !== -1) {
                            console.log("\n" + "=".repeat(50));
                            console.log("FLAG FROM UI LABEL: " + text);
                            console.log("=".repeat(50) + "\n");
                        }
                    } catch (e) {}
                },
            });
            console.log("[+] UILabel setText hook installed!");
        } catch (e) {
            console.log("[!] Could not hook UILabel: " + e);
        }
    }

    console.log("\n[+] All hooks ready!");
    console.log("[*] Now click the button in the app to reveal the flag!");
}, 1500);

Alternative: patching the IPA#

There was another approach: patching the IPA and forcing these functions to return 0 as well — but who doesn’t love JavaScript? :“D
